HedgePets art direction (3D)

Gerald is a bush that happens to look like a beaver - a storybook creature made of living plants, not a realistic animal covered in leaves. The silhouette establishes the animal, the foliage the material, the face the personality; the renderer builds the three separately so none can destroy the others. Acceptance is visual (see Acceptance).

Architecture

File Role
scripts/art/character_art_profile.gd CharacterArtProfile resource: every art number, as data. gerald() holds Gerald’s defaults.
pets/gerald.tres Gerald’s profile (re-save with godot --headless --path . --script tools/save_profile.gd). Future pets = new profiles.
scripts/art/hedge_anatomy.gd Region geometry (ellipsoid surface points and normals), head-local facial anchors, smooth face protection.
scripts/art/foliage_builder.gd Seeded hierarchical foliage: region -> clusters -> leaves -> flowers.
scripts/hedge_pet_3d.gd Assembles the pet from the profile: world, regions, face, foliage, life, detail levels, view presets.
shaders/leaf.gdshader Leaf sprite + normal map; matte watercolour pigment; silhouette ink vs. faint interior ink; GPU wind; detail-level culling.
shaders/paper_ground.gdshader The ground is the paper: shows the paper colour, softly darkened only by shadow.
shaders/ink_hull.gdshader Inverted-hull ink outline for tail, feet, ears, muzzle, eyes, nose, teeth.
scripts/art/art_debug.gd Developer inspection view (F1).

Hierarchy: BUSH -> CLUSTERS -> LEAVES. Clusters are spread evenly (jittered Fibonacci sphere), kept apart (cluster_min_gap, the negative space), coloured as one pigment family, then filled with a big crown leaf and smaller leaves around it. The inner leafy mass shows in the gaps on purpose.

Primitives (scripts/art/hedge_anatomy.gd)

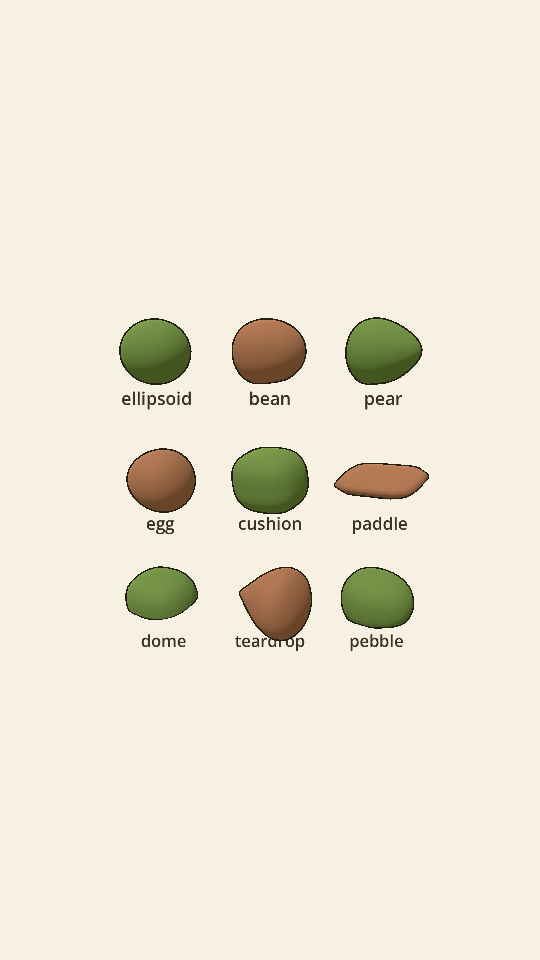

Every region is a blob: a superellipsoid |x/a|^n + |y/(b*s)|^n + |z/(c*s)|^n = 1 with s = 1 + taper * x/a. exponent n (2 ellipsoid, 2.5-4 cushion/slab), taper (+ grows toward the front, - toward the back), flat_bottom (cut at -flat*b so it sits on the ground). Surface points by bisection along a direction, normals from the gradient, meshes from HedgeAnatomy.build_mesh(); foliage, anchors and the debug view all use the true shape. A region’s shape is a dictionary of numbers or a preset name:

primitives

Preset Numbers Use
ellipsoid - plain
bean n 2.15, taper -0.14, flat 0.88 Gerald’s body: fuller behind, sits flat
pear n 2.0, taper -0.35, flat 0.9 a sitting body
egg n 2.0, taper 0.2 heads
cushion n 2.8 muzzles, snouts
paddle n 4.0 (flat radii) beaver tails, fins, leaves
dome n 2.6, flat 0.12 feet, caps
teardrop n 2.0, taper 0.75 ears, buds
pebble n 2.3, taper -0.1, flat 0.5 stones, toes, seeds

Gerald: BODY bean (1.34 x 0.95 x 1.04), HEAD a big round head (0.84 x 0.78 x 0.80, baby proportions, close to the body), MUZZLE cushion, TAIL paddle (exponent 4), EARS small cups, FEET flat domes (terracotta).

Pets

Every pet is a CharacterArtProfile (CharacterArtProfile.<name>(), saved to pets/<name>.tres by tools/save_profile.gd) on the same renderer (scripts/hedge_pet_3d.gd). Per pet: leaf_sheet (the plant), palette, features (teeth, mouth style beaver/bunny/smile, cheeks, nose size), frame_target/frame_distance, and regions with optional shape, rotation, mirror, flowers (a region made of blossom), outline, color.

pets

Pet Species Plant Built from
Gerald beaver ivy bean body, big round head, cushion muzzle, paddle tail, cup ears, dome feet, teeth
Clover bunny (sitting) clover pear body tapered along y, egg head, tall leafy ears (mirrored, rotated), a cotton tail of blossom, teeth
Juniper hedgehog fern low bean body with fronds sweeping up (max displacement 0.32), bare cream head tapering to a snout, tiny ears
Bramble tortoise jasmine (flowering) domed shell (flat_bottom 0.42), sage egg head, dome legs, teardrop tail

Controls: drag to turn (turntable, momentum eases out), drag up/down to tilt, wheel to zoom, tap for a hop; ‹ › or arrow keys switch pets. Captures ignore live input (tools/capture_pets.gd, tools/capture_views.gd); tools/rotation_check.gd drives a scripted drag.

Silhouette ink

shaders/leaf_ink_shell.gdshader is the leaves’ next pass: each leaf gets a slightly larger ink copy just behind it, drawn only where the leaf lies on the creature’s outline (its surface faces sideways to the camera), so the ink is thick at the silhouette and absent inside. shell 0.12 (line weight), threshold 0.74, strength from silhouette_ink. Appendages keep their inverted-hull outline (widths are world units since the primitives are built at true size: muzzle 0.016, tail 0.025, ears 0.018, feet 0.016).

Regions (profile.regions)

Each: center, radii (ellipsoid), parent (“” or “HEAD”), foliage, density, leaf_scale, max_displacement, growth_up, material.

Region Foliage Leaf scale Max displacement Notes
BODY dense (1.3) 1.0 0.26 rounded mass; the 80/20 silhouette: leaves lift off the surface no further than this
HEAD 2.3 (protection thins it) 0.65 0.11 smaller leaves, tighter outline, distinct from the body; turns with the head
MUZZLE none - - moss, always clear; nose, mouth and teeth sit on it
TAIL none - - one paddle, restrained engraved crosshatch
EARS none - - small leaf-cups
FEET none - - four terracotta nubs, short and compact

Face (profile.anchors, profile.protected_zones)

Anchors are head-local directions on the HEAD or MUZZLE surface: EYE_LEFT, EYE_RIGHT, NOSE, MOUTH, TEETH, CHEEK_LEFT, CHEEK_RIGHT. Features attach there, so they follow the head as its shape changes. Each protected zone has an angular radius and a strength; foliage density and leaf size fall off as a smooth gaussian toward the anchor (a soft clearing, never a hole), and no cluster is centred on the face. The muzzle is always clear. Eyes: dark, round, slightly oversized, one restrained highlight, an ink rim. Mouth: a few strokes. Teeth: two pale boxes. Cheeks: a peach wash.

Tunable parameters

Parameter Gerald Meaning
leaf_size 0.40 base leaf length (world units)
leaves_per_cluster 20 leaves per clump (head 75 %)
cluster_spread 0.52 angular size of a clump
cluster_min_gap 0.36 minimum angle between clump centres
coverage 0.86 fraction of a clump’s leaves kept (gaps)
face_clearing 1.0 multiplier on all protected zones
silhouette_scale 1.0 multiplier on every max_displacement
growth 1.0 0.35 LOW, 0.65 MEDIUM, 1.0 FULL
flowering 0.35 0 none .. 1 FLOWERING (never near the face)
tendrils 4 short vines from the lower body
palette deep forest, muted ivy, matcha, warm yellow-green, soft sage, pale highlight a cluster’s family comes from its exposure (up and toward the key = lighter); variation color_variation within it; crown leaves a touch paler
inner_mass #34502a the green in the gaps
silhouette_ink / interior_ink 0.85 / 0.30 ink on edge-on (silhouette) leaves vs. inside the foliage
outline_strength 1.0 inverted-hull outline width multiplier
key_energy, key_angle, fill_energy, ambient_energy 0.72, (-58, -32), 0.30, 0.50 soft illustration light; the fill comes from the viewer so the face never falls into shadow
shadow_softness, shadow_strength 4.0, 0.32 soft, light cast shadows on the paper
eye_size, blink_interval, look_strength, hop_height 0.145, 2.4-5.5 s, 0.22, 0.38 expression
lod CLOSE 100 % leaves; MEDIUM 55 %, 1.25x, half interior ink; FAR 25 %, 1.7x, no interior ink detail levels; chosen from his height on screen (>360 px CLOSE, >170 px MEDIUM)

Rendering choices: linear tonemap (an illustration: the paper stays the paper), no environment reflections, matte leaves (roughness 1, wrap diffuse, no specular), filmic photo-real look avoided on purpose.

Developer view (F1)

Toggles: base primitives, regions, anchors, face zones, clusters, leaves, silhouette bounds, normals, lighting. Sliders: foliage density, cluster size, leaf scale, silhouette displacement, face clearing, color variation, outline strength, shadow softness (regrows from the same seed). Detail: AUTO / CLOSE / MEDIUM / FAR. Not in the player’s view.

Acceptance

DISPLAY=:0 godot --path . --script tools/capture_views.gd && python3 tools/contact_sheet.py renders FRONT, SIDE, THREE-QUARTER, DISTANT and LOW, MEDIUM, FULL, FLOWERING into /tmp/hedgepets-views (copies in docs/acceptance/; phone_small.png is the distant view at real phone-thumbnail size). Also tools/capture_debug.gd, tools/perf_levels.gd, tools/determinism_check.gd.

Constraints (enforced by the data above): eyes and mouth never obscured (protected zones + clear muzzle); head distinct (separate region, smaller leaves, tighter displacement); tail and feet carry no foliage; flowers never near the face (protection < 0.05 and > 1.1 from the head); silhouette displacement bounded per region; foliage thins toward facial anchors; rounded ellipsoid proportions.

Measured (2026-10-08, RTX 3050, 540x960 window)

1,108 leaves built. 60 fps at every level with vsync; without vsync CLOSE 579 fps (1.7 ms), MEDIUM 563, FAR 624. Deterministic: the same seed rebuilds identically; another seed differs.

The goal-image pass (2026-10-08)

docs/acceptance/goal_compare.png: hedgepetsGoal.jpg beside Gerald.

The cute pass (everyone)

SpeciesBuilder.plantify applies the goal-image rules to every pet. That’s the 40 generated from pets/species.json and the six hand-made ones besides Gerald.

Before and after: docs/acceptance/roster_before_cute.png, docs/acceptance/roster.png.

Moss patches and eyes

Tools for honing pets
